We, FHPEE Engineered Products Co.,Limited a Chinese professional manufacture since 1998 years and ISO9001-2000 approval for 8 years of Glass-Lined and 304, 316L stainless steel chemical reactors and customer designed fabricated Chemical reactors, Storage Tanks, Blenders, Condensers and all its accessories, pipes, fittings and sections. All the Reactors are available with all Standards Testing Facility. Which jacketed, agitated, limpet coil, complete with gear box explosion proof motor and glass lined or stainless steel heat exchanger and complicated process system, those can operate under pressure or vacuum.

Contact us for asking catalogue if you’re interesting our glass lined/stainless steel reactor/vessel.

Fabrication Code and Standard

Glass Lined Equipments are manufactured to the highest Quality Standard of workmanship and material. The Reactors are generally as per GB Standards 28136 and manufactured with 100% nondestructive examination (radiographic inspection, Penetrate testing, magnetic particle testing and ultrasonic inspection). All Clamps and Flanges Compile with GB / DIN Standard, Equipment are also specially designed and constructed to the client’s own specifications. Glass Lining Inspection and Testing are as per ISO standard by 20000 volt electric spark testing the Electrical properties of glass lining layer.

General Introduction of Pressure Vessels

we can manufacturevarious reactor and storage-tank of 50L - 20,000L. We also can manufacturevarious specifications of stainless steel reactor and storage tank. Glass-lined equipment is a kind of vessel whose main body is made of high quality carbon steel lined with special silicate glass by fritting as a high temperature. It has mechanical strength like steel-made vessel. It is irreplaceable with stainless steel, engineering plastic and other alloy steel materials under a certain medium and temperature at corrosion resistance. It is also indispensable and economic and good corrosion resistance equipment (for hydrolysis, neutralization, crystallization distillation evaporation and storage) in industries of production of pharmacy, chemical, dyestuff, organic synthesis, foodstuff, pesticide and defense.

Advance And Mature Reaction And Heat Exchanger Technology

1. Agitation efficient 2. Ready-to Use 3.Durability 4.functionality

5. 50- 60000 liter 6. Economic efficient 7. Easy install and require minimal maintenance

Please contact for more technical data and dimensions as well as our products catalogue for your reference.

We manufacture and provide:

1) Glass Lined and 304, 316L stainless steel Reactor: 50L - 30, 000L.(Lab using: 5-30L; Electrical heating:50-3000L);
2) Glass Lined and 304, 316L stainless steel Storage Tank/Receiver: 100L - 50, 000L;
3) Glass lined and 304, 316L stainless steel Distiller: 300-6000L;

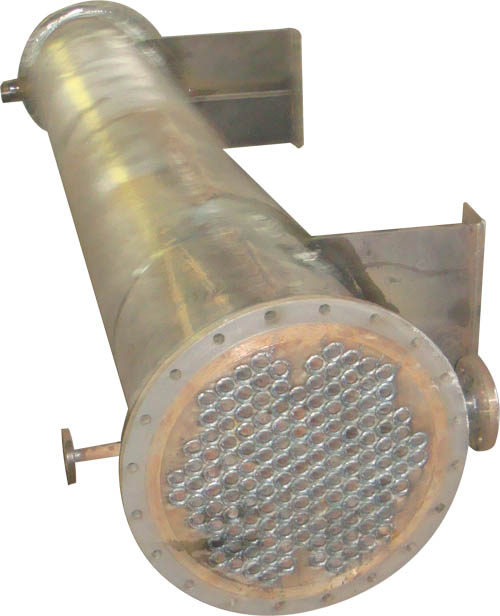

4) Glass Lined and 304, 316L stainless steel Heat Exchanger/Condenser: Plate type/ Shell and tube type/Sleeve type etc;
5) Glass Lined and 304, 316L stainless steel Double Cone Vacuum Dryer;
6) Glass Lined and 304, 316L stainless steel Pump;
7) Glass lined Pipe and Fittings.

The Glass Lined Equipment manufactured by our workshop is all:

1)  Resistant to corrosion for acids and alkalis temperature up to 180 C degree often higher depends on
2)  Withstanding mechanical stress
3)  Withstanding thermal shock
4)  Resistant to adhesion
5)  Favorable price, high quality and excellent after-sales service

6)  Jacketed or limpet coil straight side for product heating and cooling

7)  Complete with a sight glass

8)  Easy and fast to clean internal surface

9)  Glass lining with steel outside for structural strength is an inert material. There is no contamination of product purity. Color and taste are not affected. Sticky materials such as latex and resins do not readily cling to the fire-polished smooth surface.

10) Our tanks and receivers provide the many advantages of glass with the durability and strength of steel.

The glass lining surface eliminates contamination to increase product purity and allows an easy, fast and thorough cleaning. With steel outside for structural strength. FHPEE can provide custom designs if these standard sizes do not meet your specific process conditions.

The technical details descriptions of our Glass lined Equipment Performance:

1. Max. Design Pressure:10 Mpa
2. Max. Design Temperature: -20 C degree To 350 C degree
3. Elliptical, dished, flat or conical head
4. Domestic/industrial uses
5. Material: austenitic stainless steel, 304, 321, 316l. / cladding
6. plate of austenitic stainless steel
7. Max. Volume: 100M3
8. agitator speed at 0-600 rpm
9. Custom designs available
10. Heated with inside-coil, outside-coil, jacket or U-tube
11. The Glass-lining Thickness: 0.8-2.0mm
12. Final Hydrostatic Test: 1.6 Mpa
13. The High Voltage- sparking test to Glass-lining: 20KV
14. Radiography Shell / Head: welding Spot / Full
15. Penetrate testing Shell / Head: welding Spot / Full
16. Magnetic particle testing Shell / Head: welding Spot / Full
17. Ultrasonic inspection Shell / Head: welding Spot / Full
18. Joint Efficiency: 0.85 / 1.0
19. Corrosion Allowance 1.0
20. Water, steam or oil heating
21. Mechanical sealing
22. Explosion proof motor with Cycloid reducer or Explosion proof motor with gear box system
23. Flameproof motor with gear box
24. Impeller/anchor/paddle and customized glass lined/stainless steel agitator

General terms and conditions:

Original:     P.R China

Brand:       FHPEE

Type :       FHK,FHC

Voltage:     220/240/380 volt 50/60 Hz

Power:      1.0-20 Kw

Dimension(L*W*H):   According Specific Requirement/Order, OEM service

Weight:      50- 15000 Kgs

Qualification:  Complicate FAT report- Chinese government Special equipment inspection institute

Guarantee Period:   12 months

According Specific Requirement/Order, OEM service

Loading port:   Dalian port, China

Packing:    Ocean transfer suitable strong steel frame plus clad plates

Delivery timeline:   20-60 days to dispatch

We also done export our products to Asian country, such as high-request area, Taiwan area, Japan, Iran, South Korean for several years, so, we know the India market well, kindly, feel free to contact us, and send us your requirement. We confident offer you the more competitive price as well as quality provable as best services!

Please contact for more technical data and dimensions as well as our products catalogue for your reference.

We’d like to see new clients coming in and old clients enjoy our service.

Sincerely yours,

Leo.Lee

Technical Sales Director

FHPEE Engineered Products Co., Limited
